Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
3 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
1.5 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
0.5 Amps
Max Power:
25 Watts
Known Country of Origin:
USA
Features

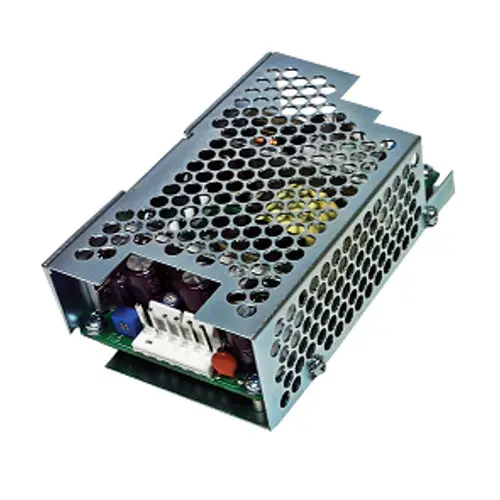

IPD SRP-25-3002-CH chassis power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.25x4x0.96
Available in open frame and chassis/cover
One to three outputs
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
