Description

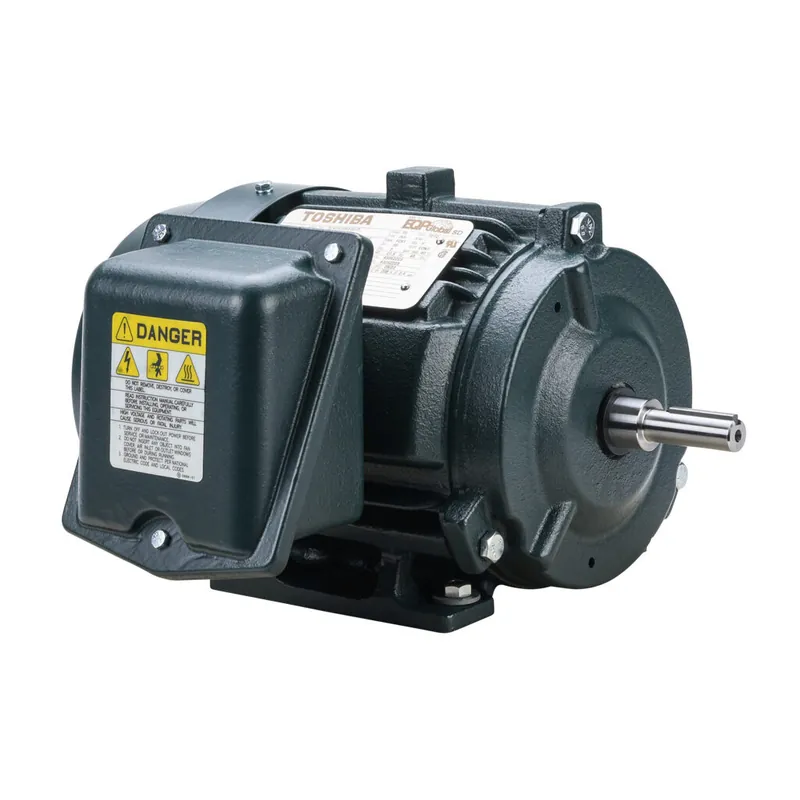

Toshiba SD premium efficiency AC induction motor, high-performance inverter duty and severe duty, 3/4hp, 3-phase, 230/460 VAC, 3600rpm, TEFC, NEMA 56 frame, cast iron, rigid base mount.
Brand: Toshiba
Item: Motor
Series: SD
Efficiency Group: Premium efficiency
Efficiency: 84
Voltage Type: AC
Motor Type: Induction
Motor Application: High-performance inverter duty and severe duty
Horsepower Rating: 3/4hp
Number of Phases: 3
Voltage Rating: 230/460 VAC
Synchronous Speed: 3600rpm
Nameplate RPM: 3510rpm
Overload Type: None
Enclosure Type: TEFC
Shaft Type: Round with square key
Shaft Diameter: 5/8in
Shaft Material: 1045 hot rolled (C-204) steel
Motor Frame: NEMA 56
Frame Material: Cast iron
Electrically Reversible: Yes
Insulation Class: Class F
IP Rating: IP55
Constant Torque Rating: 10:1
Variable Torque Rating: 60:1
Service Factor: 1.25
Integrated Brake: No
NEMA Design: Design B
Junction Box Orientation: F1
Mounting: Rigid base
Mounting Orientation: Horizontal or shaft down
Additional Information: Class I Div 2 hazardous rating
