Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
30 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
1.5 Amps
Output Voltage #3:
-24Vdc
Output #3 Max Current:
1.5 Amps
Max Power:
200 Watts
Known Country of Origin:
USA
Features

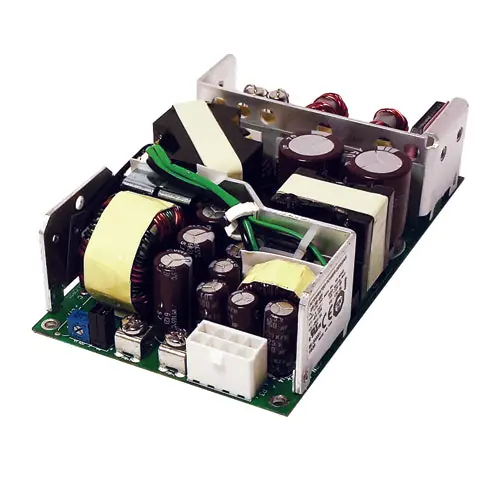

IPD GRN-200-3003 multiple output open frame medical power supply
AC input range: 85~264Vac
Operating temperature: -20~+70°C
IEC 60950-1 ITE certification
IEC 60601-1 medical certification 3rd edition and IEC 60601-1-2 4th edition EMC
2 x MOPP – (means of patient protection – primary to secondary)
<300mW>
Small compact size: 3×5 inchesx1.35
Dual, triple or quad outputs
Made in USA – IPD GRN-200 multiple output power supplies are manufactured in the US
Available with optional chassis and cover
Integrated Power Designs 3 year warranty
