Description
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
5.42 Amps
Output Peak Current:
7.5 Amps
Max Power:
65 Watts
Known Country of Origin:
Taiwan
Features

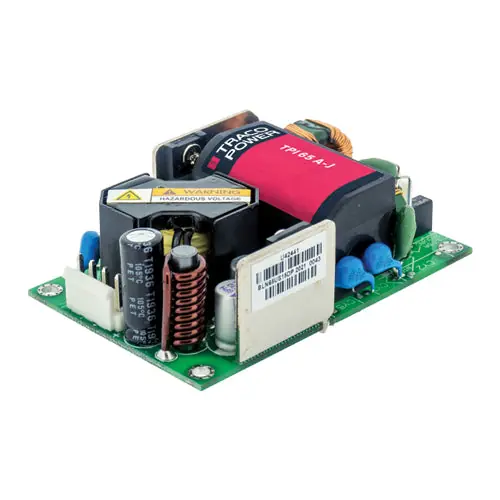

TRACO Power TPI 65-112A-JP 2×3 compact open frame power supply
AC input range: 85~264Vac
Operating temperature: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Reinforced I/O isolation 3000Vac
Peak power 140% for 10 seconds
High efficiency
Protection class II
Low leakage current <75µA
No load power consumption <0.3 Watts
Operation up to 5000m altitude
Protections: short circuit / overvoltage
TRACO Power 3 year warranty
