Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
1 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
-1 Amps
Max Power:
45 Watts
Known Country of Origin:
USA
Features

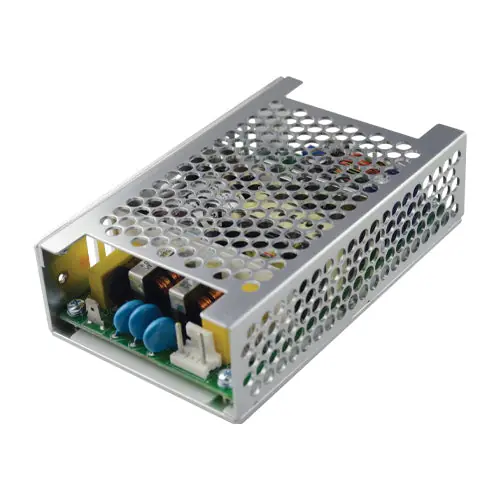

IPD GRN-45-3001-CHCO multiple output power supply with chassis and cover
AC input range: 85~264Vac
EN 60950-1 ITE certification and EN 60601-1 medical certification
2xMOPP – Means of Patient Protection (primary to secondary)
<1W>
Operating temperature: 0~+70°C
Small compact size, high power density
Made in USA – IPD power supplies are manufactured in the US
Available open frame or with optional chassis
Protections: over voltage / over power
Integrated Power Designs 3 year warranty
