Description
Input Voltage:
85~264Vac
Output Voltage #1:
30Vdc
Output #1 Max Current:
1.2 Amps
Output Voltage #2:
-15Vdc
Output #2 Max Current:
0.7 Amps
Max Power:
40 Watts
Known Country of Origin:
USA
Features

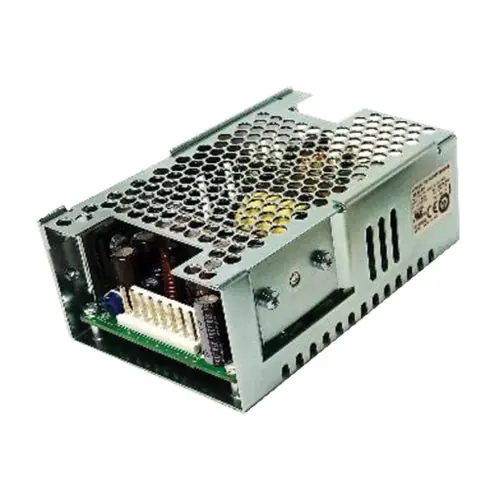

IPD SRP-40A-2006-CH chassis power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.5×4.2×1.2
Available in open frame and chassis/cover
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
