Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
2 Amps
Max Power:
70 Watts
Known Country of Origin:
USA
Features

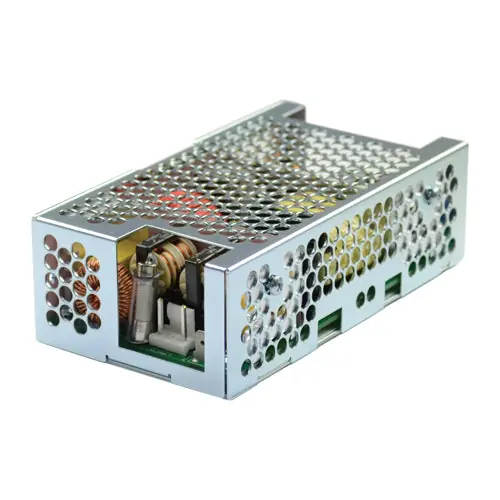

IPD REL-70-3001-CHCO enclosed medical power supply with chassis and cover
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP – Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size dimensions: 2.62×4.79×1.48
Available in open frame and chassis
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
