Description

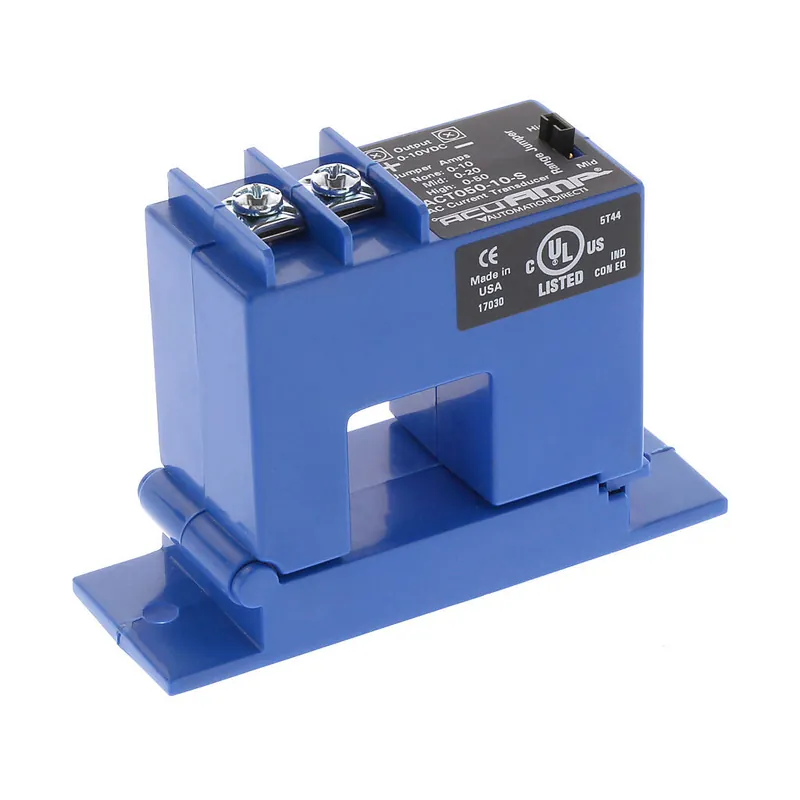

AcuAMP AC current transducer, 1-phase, split core, 0-10, 0-20, or 0-50A selectable sensing range, 0-10 VDC output.
Brand: AcuAMP
Item: Current transducer
Voltage Type: AC
Number of Phases: 1
Body Type: Split core
Sensing Range: 0-10, 0-20, or 0-50A selectable
True RMS: No
Output: 0-10 VDC
Operating Voltage: Self powered
Mounting: Panel or optional 35mm DIN rail
Electrical Connection: Screw terminals
UL Rating: UL 508 listed
Item: Current transducer
Voltage Type: AC
Number of Phases: 1
Body Type: Split core
Sensing Range: 0-10, 0-20, or 0-50A selectable
True RMS: No
Output: 0-10 VDC
Operating Voltage: Self powered
Mounting: Panel or optional 35mm DIN rail
Electrical Connection: Screw terminals
UL Rating: UL 508 listed
