Description

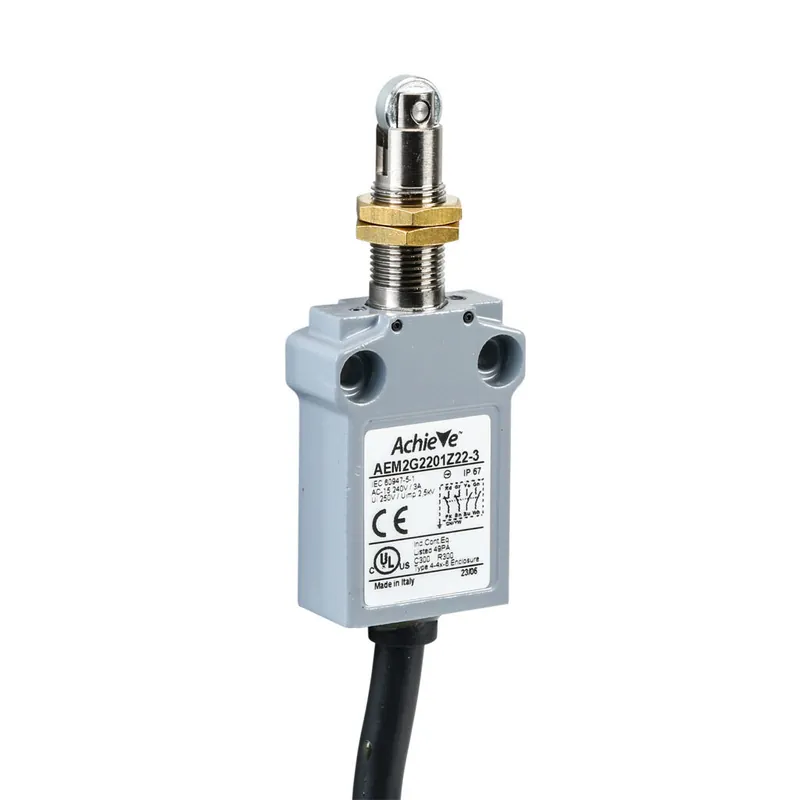

AchieVe compact limit switch, metal plunger with metal roller and fixing nuts, (2) N.O./(2) N.C. contact(s), snap action, 25mm hole spacing, zinc alloy, pigtail, 9.8ft/3m cable length, bottom exit.
Brand: AchieVe
Item: Limit switch
Switch Type: Compact
Actuator Type: Metal plunger with metal roller and fixing nuts
Contact Type: (2) N.O./(2) N.C.
Action: Snap action
Reset: No
Body Width: 35mm
Mounting Hole Spacing: 25mm
Material: Zinc alloy
IP Rating: IP67
Operating Temperature: -25 to 70 deg C
Connection: Pigtail
Conductor Size: 20 AWG
Jacket Material: PVC
Halogen Free: No
Cable Length: 9.8ft/3m
Cable Exit: Bottom
Item: Limit switch
Switch Type: Compact
Actuator Type: Metal plunger with metal roller and fixing nuts
Contact Type: (2) N.O./(2) N.C.
Action: Snap action
Reset: No
Body Width: 35mm
Mounting Hole Spacing: 25mm
Material: Zinc alloy
IP Rating: IP67
Operating Temperature: -25 to 70 deg C
Connection: Pigtail
Conductor Size: 20 AWG
Jacket Material: PVC
Halogen Free: No
Cable Length: 9.8ft/3m
Cable Exit: Bottom
