Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
15 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
8 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
2 Amps
Max Power:
150 Watts
Known Country of Origin:
USA
Features

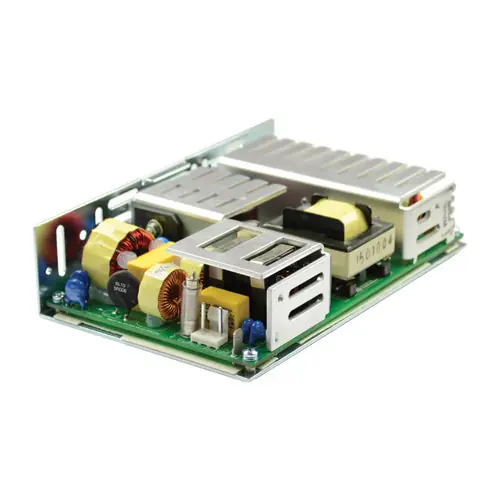

IPD REL-150-4005-CH medical power supply with chassis
AC input range: 85~264Vac
Operating temperature: 0~+70°C
UL60950-1 ITE and AAMI/ANSI ES 60601-1 medical certifications
PFC
Small compact size, dimensions: 3.96″x6.25″x1.48″
Available in open frame and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
