Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
30 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
1.5 Amps
Output Voltage #3:
-24Vdc
Output #3 Max Current:
1.5 Amps
Max Power:
200 Watts
Known Country of Origin:
USA
Features

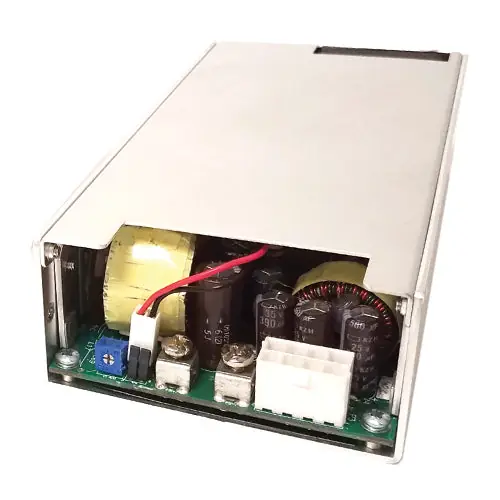

IPD GRN-200-3003-FN multiple output enclosed power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1
Medical safety certification: Meets EMC emission immunity to IEC 60601-1-2 4th edition
2xMOPP
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
MIL-STD-810G
Built-in PFC
Built-in fan
Shock & vibration proof
Low earth leakage current <300µA
Factory configurable output voltage combinations
Adjustable output voltage
Remote sense function
Compact size: 6×3.2×1.6
Protections: overvoltage / overload
Integrated Power Designs 3 year warranty
