Description
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
30 Amps
Output Voltage #2:
3.3Vdc
Output #2 Max Current:
8 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
2 Amps
Max Power:
200 Watts
Known Country of Origin:
USA
Features

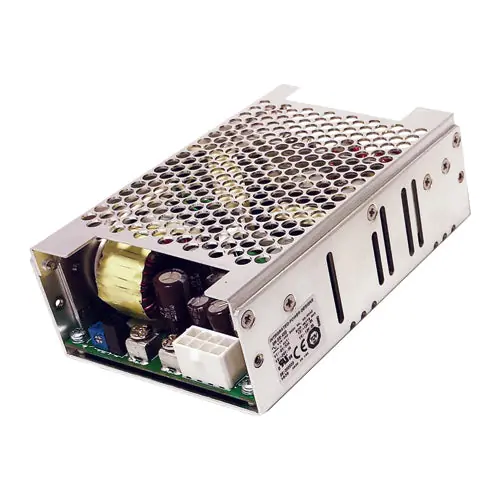

IPD GRN-200-4002-CHCO multiple output power supply with chassis and cover
AC input range: 85~264Vac
Operating temperature: -20~+70°C
<300mW>
IEC 60950-1 ITE certification
IEC 60601-1 medical certification 3rd edition and IEC 60601-1-2 4th edition EMC
2 x MOPP – Means of Patient Protection (primary to secondary)
Made in USA – IPD GRN-200 multiple output power supplies are manufactured in the US
Available open frame or with chassis only
IPD 3 years warranty
