Description
Input Voltage:
36~72Vdc
Output Voltage #1:
5Vdc
Output #1 Max Current:
6 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
4 Amps
Max Power:
70 Watts
Known Country of Origin:
USA
Features

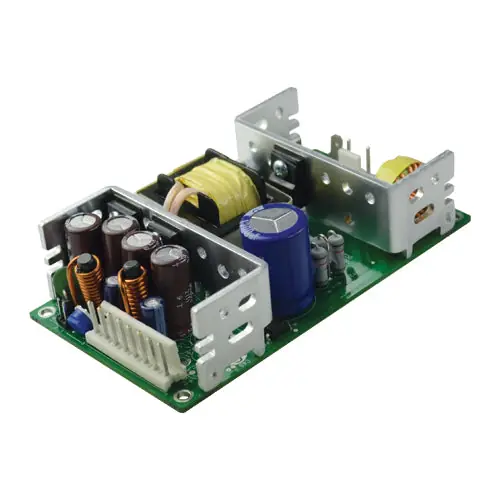

IPD DC4-70-2002 DC/DC converter with medical approvals
DC input range: 36~72Vdc (48Vdc)
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.5×4.5×1.2
Available with optional chassis and cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
