Description
Input Voltage:
36~72Vdc
Output Voltage:
12Vdc
Output Max Current:
15.4 Amps
Max Power:
184 Watts
Known Country of Origin:
USA
Features

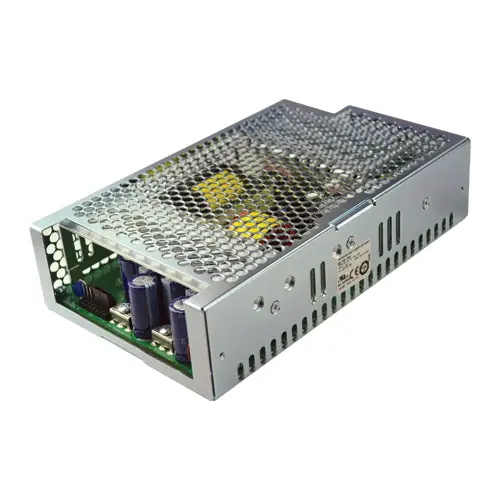

IPD DC4-185-1004-CHCO DC/DC Converter with medical approvals
DC input range: 36~72Vdc (48Vdc)
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 4.36×7.23×1.74
Available in open frame or optional chassis without cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
