Description
Input Voltage:
85~264Vac
Output Voltage #1:
24Vdc
Output #1 Max Current:
12.5 Amps
Output Voltage #2:
-28Vdc
Output #2 Max Current:
5 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
5 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
5 Amps
Max Power:
400 Watts
Known Country of Origin:
USA
Features

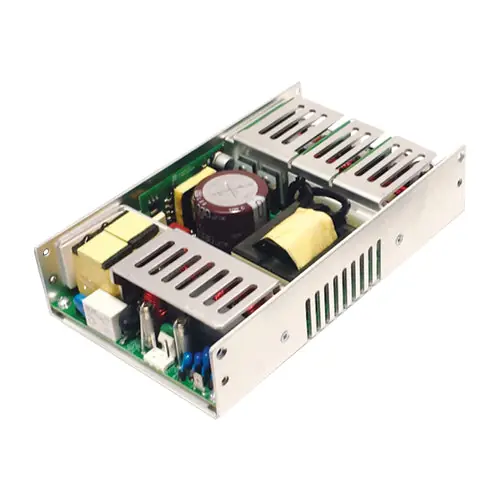

IPD NXT-400M-4005-02-CH multiple output power supply with chassis
AC input voltage range: 85~264Vac
Operating temperature range: -20~+70°C
IEC 60601-1 3rd ed. Medical Certification
IEC 60950-1 ITE Certification
IEC 62368-1 Certification
IEC 60601-1-2 4th ed. EMC
2 x MOPP – (means of patient protection – primary to secondary)
Factory configurable output voltage combinations
All DC output voltages are regulated and adjustable
Built-in active PFC
High efficiency
No load input power: <300mW
<300µA earth leakage current
Compact size: 4x7x1.5
Max power ratings achieved by providing 300LFM of forced air cooling
Remote sense, Floating or common output returns
Optional remote inhibit/enable
Optional standby output: 5V/2A, Optional power fail warning
